Automatic Cable Coiling, Tying & Cutting Machine WPM-40-80

Name: Automatic Cable Coiling, Tying & Cutting Machine WPM-40-80
Brand: Automatic Cable Stripping Equipment
SKU: WPM-40-80
Availability: InStock
Rating: 5 (1 reviews)

Cable coiling, tying and bundling machines with meter counting, wire cutting, coil winding and binding capabilities, cable rewinding machines, fully automatic wire tying and binding machines, as well as wire winding coil machines.

The outer diameter of the winding dish 350mm

Cutting diameter <8mm

Tying wire length 120-200mm

Cable tie Rubber wrapped iron wire

Suitable coil diameter for tying 18-45mm

Voltage AC220V 50Hz/60Hz

Cable coil diameter 50-280mm

Rated Power <2500W

Winding speed 1-10 sec/circle

Weight 230KG

Dimensions L1000*W450*H800(mm)

Winding tolerance 25mm

Loading weight of winding wire <2.5KG

Efficiency 3*10-meter coils of cable/min without tying

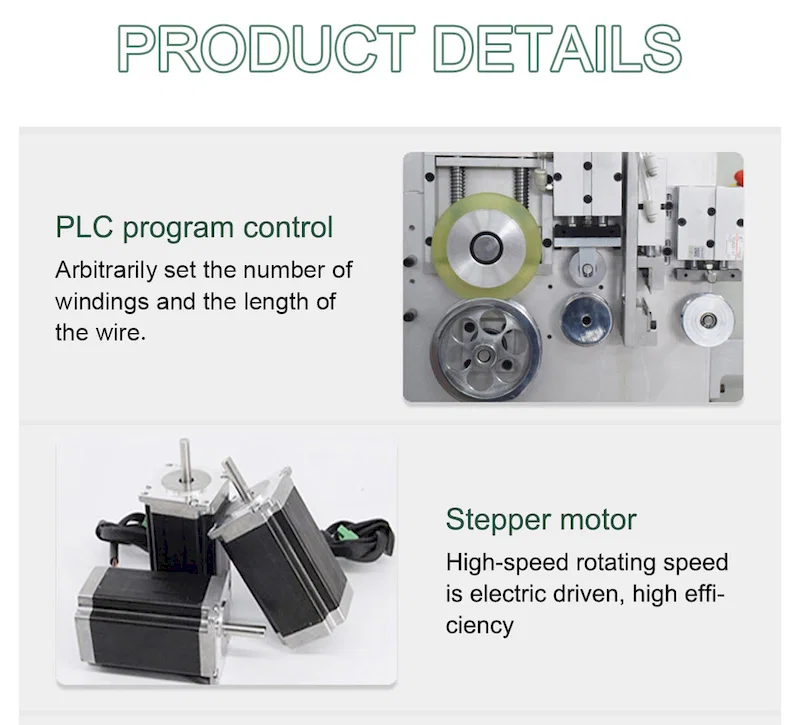

cable Coiling Tying Bundle With Meter Counting, Wire Cutting coil Winding Binding Machine, Cable Rewinding Machine, Fully Automatic Binding Wire Tying Machine, Wire Winding Coil Machine

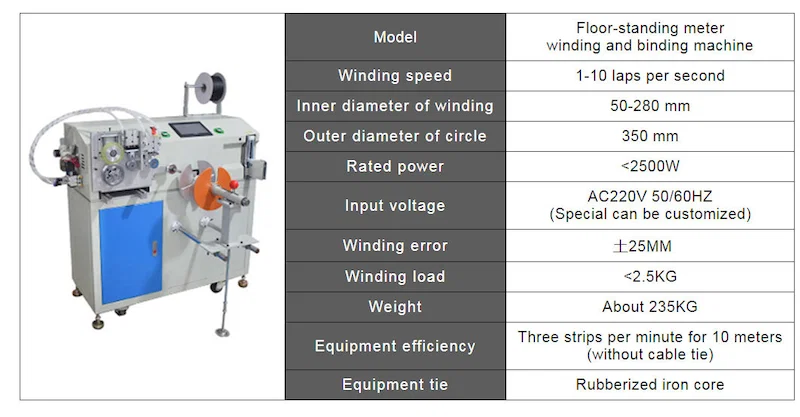

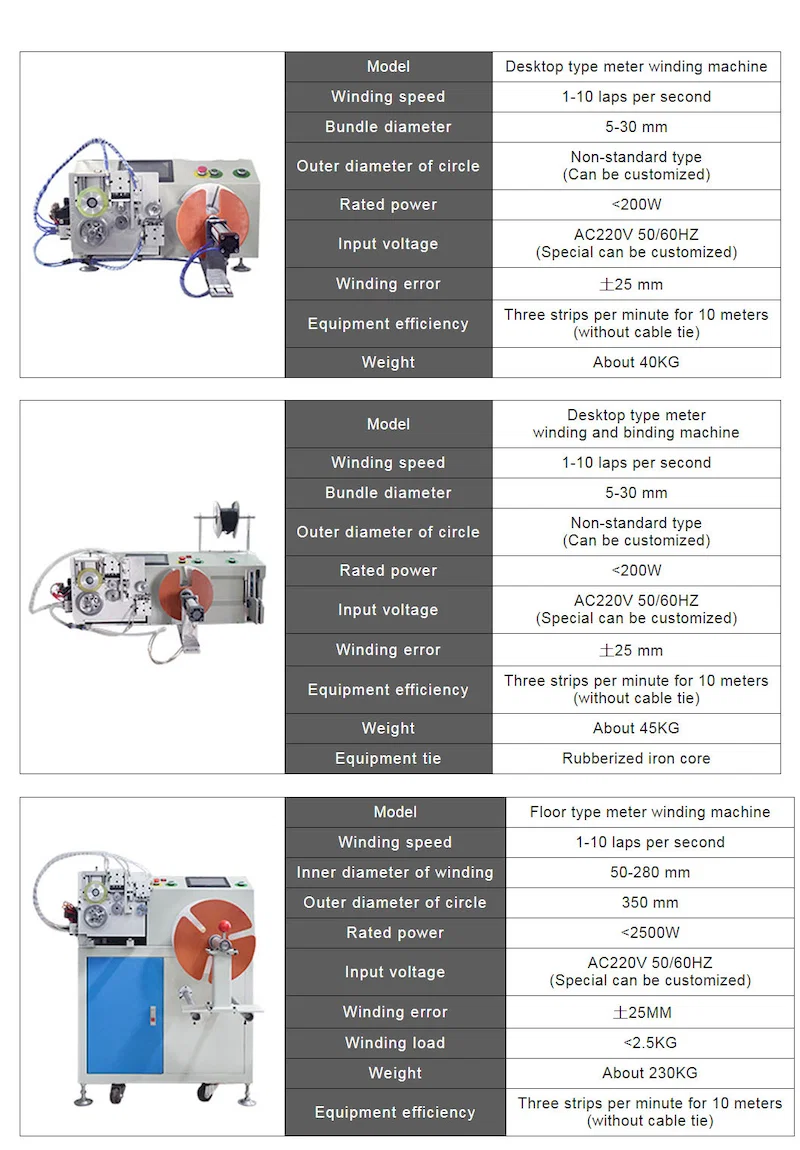

sample of cable Coiling Tying Bundle With Meter Counting, Wire Cutting coil Winding Binding Machine, Cable Rewinding Machine, Fully Automatic Binding Wire Tying Machine, Wire Winding Coil Machine

What is the primary function of the WPM-40-80 Automatic Cable Coiling, Tying & Cutting Machine?

The WPM-40-80 is a fully automatic industrial machine designed to streamline wire and cable processing. Its primary function is to automatically coil, tie (bind), perform meter counting, and cut cables or wires into finished, bundled coils. This integrated solution eliminates manual handling, significantly boosting productivity and consistency in wire harness and cable assembly operations.

What cable/wire sizes and coil diameters can this machine handle?

This machine is engineered for versatility within industrial parameters. It can effectively handle wire diameters up to <8mm. For coiling, it accommodates finished coil diameters ranging from 50mm to 280mm, making it suitable for a wide variety of cable types and bundle sizes used in manufacturing and logistics.

How fast is the WPM-40-80 machine, and what is its production capacity?

The WPM-40-80 offers high-speed automation with a production rate of approximately 3 coils per minute, with each coil having a standard length of 10 meters. This translates to processing about 30 meters of cable per minute, providing a substantial output increase compared to manual coiling, tying, and cutting processes.

What are the key benefits of using this automatic binding and coiling machine?

Key benefits include: 1) **Increased Efficiency:** Fully automatic operation drastically reduces labor time and cost. 2) **Consistent Quality:** Produces uniform, tightly bound coils every time, improving product presentation and handling. 3) **Integrated Meter Counting:** Ensures precise cable length in every coil, eliminating waste and measurement errors. 4) **Robust Construction:** As industrial wire harness equipment, it's built for durability in demanding environments, ensuring reliable long-term performance.

What are the power requirements and physical specifications of this machine?

The machine operates on standard AC220V power. It has a substantial build with a weight of 230kg, indicating a robust, stable industrial design suitable for factory floor integration. Its fully automatic system consolidates multiple processes (coiling, tying, counting, cutting) into one compact footprint, saving valuable floor space while providing a complete cable rewinding and bundling solution.
