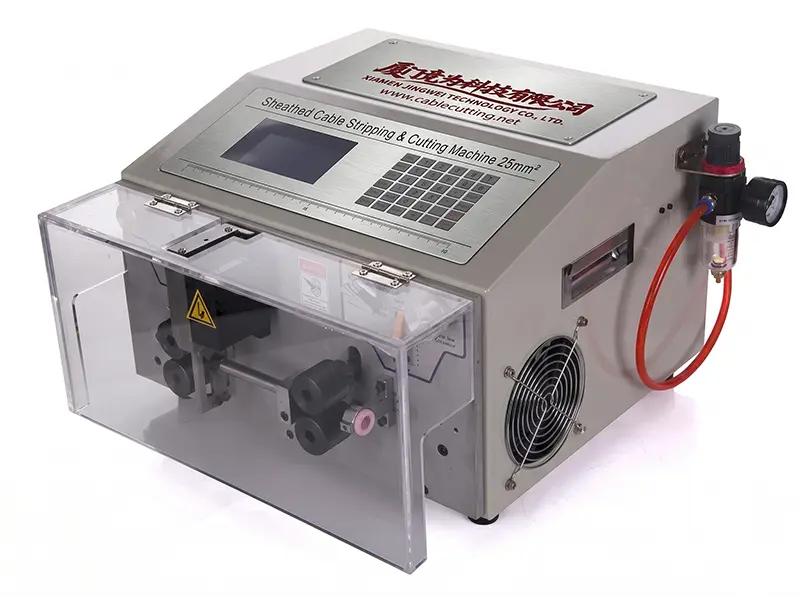

Automatic Sheathed Cable Stripping & Cutting Machine 25mm² WPM-09HT2

Name: Automatic Sheathed Cable Stripping & Cutting Machine 25mm...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-09HT2
Availability: InStock
Rating: 5 (1 reviews)

Sheathed cable cutting and stripping machine， Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product, Sheathed cable cutting and stripping machine WPM-09HT2

Maximize Wire Processing Speed and Precision with Our Sheathed cable cutting and stripping machine: Automated Efficiency for Demanding Applications

Introduction:

Introducing the Sheathed cable cutting and stripping machine WPM-09HT2, a full-automatic computer-controlled powerhouse designed to redefine efficiency in your wire processing workflow. This advanced Round Wire Stripping Machine, also known as a Cutting And Stripping Machine and a premium Cable Strip Product, is expertly engineered for high-volume, precise cutting and stripping of single-strand, multi-strand, and sheath wires. The WPM-09HT2 cable cutting and stripping machine excels in handling a wide range of wire sizes, from 0.1mm² up to a substantial 25mm², and can process remarkably long lengths up to 100 meters. Specifically designed for sheath wires, especially those requiring long head and tail stripping, this machine delivers unmatched automation, speed, and accuracy. Experience user-friendly LCD touch screen operation, high-speed performance, and versatile wire handling capabilities with the WPM-09HT2 – your ultimate solution for demanding wire preparation needs.

Key Features and Benefits:

Full-Automatic Computer Wire Stripping for Unparalleled Automation: This cable cutting and stripping machine provides full-automatic operation, automating the entire process of cutting and stripping single-strand, multi-strand, and sheath wires. Significantly reduce manual labor and maximize your production efficiency.
Versatile Wire Processing for Single-Strand, Multi-Strand, and Sheath Wires: The WPM-09HT2 is engineered for versatile wire processing, capable of handling single-strand, multi-strand, and sheath wires, providing a single machine solution for diverse wire preparation needs.
Large Wire Cross-Section Capacity (0.1-25mm² / AWG 8#-32#) for Broad Application: With a wide cutting cross-sectional area capacity ranging from 0.1-25mm² (AWG 8#-32#), this machine accommodates a broad spectrum of wire sizes, making it suitable for diverse applications and wire types.
Extra-Long Cutting and Stripping Lengths for Demanding Requirements: Handles impressive cutting lengths up to 100 meters, head-stripping lengths up to 250mm, and tail-stripping lengths up to 150mm. Meet even the most demanding wire preparation requirements with extended length capabilities.
Optimal for Sheath Wire Processing, Especially Long Head and Tail Sheath Wires: Specifically designed for sheath wire processing, the WPM-09HT2 excels at stripping sheath wires, especially those requiring longer head and tail stripping lengths, making it ideal for specialized cable types.
User-Friendly LCD Touch Screen Display in English and Chinese for Intuitive Operation: Features a clear LCD Liquid Crystal Display screen with both English and Chinese language options, providing user-friendly operation, easy parameter setting, and intuitive machine control.
High Precision Cutting and Stripping for Consistent and Reliable Wire Preparation: Achieve high precision in cutting and stripping, with a cutting tolerance of ≤0.002×L (L = Cutting Length). Ensure consistent and reliable wire preparation, minimizing errors and material waste.
Middle Stripping Capability with Up to 13 Places for Complex Wire Configurations: Supports middle stripping with up to 13 places along the wire, enabling processing of complex wire configurations and specialized stripping requirements.
High-Speed Stripping Performance for Increased Throughput (4000-10000 pcs/h): Achieve exceptional stripping speeds of 4000 – 10000 pieces per hour (depending on wire length), significantly boosting your production throughput and reducing cycle times with this high-performance machine.
Four-Wheeled Drive System for Stable and Reliable Wire Feeding: Equipped with a robust four-wheeled drive system powered by a silent hybrid stepping motor advancing 0.1mm per step, ensuring stable and reliable wire feeding, minimizing slippage and maximizing processing accuracy.
Adjustable Speed Control (0-9 Levels) for Optimized Processing of Different Wire Types: Offers adjustable speed control with 10 levels (0-9), allowing you to optimize the processing speed for different wire types and materials. Tailor the machine's performance to specific wire characteristics for optimal results.
Durable High-Quality Tungsten Steel Blade for Long-Lasting Precision Cutting: Utilizes a high-quality tungsten steel blade ensuring durable and precise cutting performance for extended operational life and consistently high-quality results.

Technical Specifications:

Feature	Specification
Product Type	Sheathed Cable Cutting and Stripping Machine
Keyword Focus	cable cutting and stripping machine
Also Known As	Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
Model	WPM-09HT2
Operation Type	Full-Automatic Computer Wire Stripping
Applicable Wire Types	Single-strand, Multi-strand, Sheath Wire
Optimal Wire Type	Sheath Wire (Especially Long Head/Tail)
Cutting Cross-sectional Area	0.1 – 25mm² (AWG 8#-32#)
Max Conduit Diameter	￠11mm
Cutting Length Range	0.1mm – 100m
Cutting Tolerance	≤0.002×L (L = Cutting Length)
Sheath Stripping Length (Head)	0.1 – 250mm
Sheath Stripping Length (Tail)	0.1-150mm
Middle Stripping Places	13
Stripping Speed	4000 – 10000 pcs/h
Display	LCD Liquid Crystal Touch Screen (English/Chinese)
Driving Mode	Four-wheeled Drive (Silent Hybrid Stepping Motor)
Blade Material	High-Quality Tungsten Steel
Power	200 – 450W
Voltage	110V/220V 50HZ/60HZ
Overall Dimensions	390mm×350mm×255mm
Weight	42KG
Speed Adjustment	0 (Slowest) - 9 (Fastest)
Key Benefits	Full-Automatic, High Speed, High Precision, Versatile Wire Types, Long Length Capacity, User-Friendly Touchscreen

Applications:

The Sheathed cable cutting and stripping machine WPM-09HT2 is ideally suited for high-volume wire processing in industries requiring efficient, precise, and versatile cutting and stripping of a wide range of wire types, particularly sheath wires with demanding stripping length requirements, including:

Appliance Manufacturing: Preparing power cords and internal wiring for household appliances and consumer electronics.
Electronics Manufacturing: High-speed cutting and stripping of wires for electronic devices, cable assemblies, and wire harnesses.
Automotive Wiring Harness Production: Efficiently processing wires for automotive electrical systems and wiring harnesses.
Industrial Equipment Wiring: Preparing wires for control panels, machinery wiring, and industrial automation systems.
Telecommunications Cabling: Processing wires and cables for telecommunications networks and communication infrastructure.
Any application requiring high-speed, precise, and automated cutting and stripping of single-strand, multi-strand, and sheath wires, especially for sheath wires with long stripping length requirements.

Conclusion:

Upgrade your wire preparation workflow with the Sheathed cable cutting and stripping machine WPM-09HT2 and experience a significant improvement in efficiency, precision, and automation. This versatile, high-performance machine is designed to streamline your operations, reduce manual effort, and deliver consistently superior wire cutting and stripping results across a wide range of wire types and applications. Contact us today to learn more and request a personalized quote to revolutionize your wire processing workflow!

Adjusting Speed: 0 Slowest, 9 Fastest

Sheathed cable cutting and stripping machine，Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product

Sheathed cable cutting and stripping machine，Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product

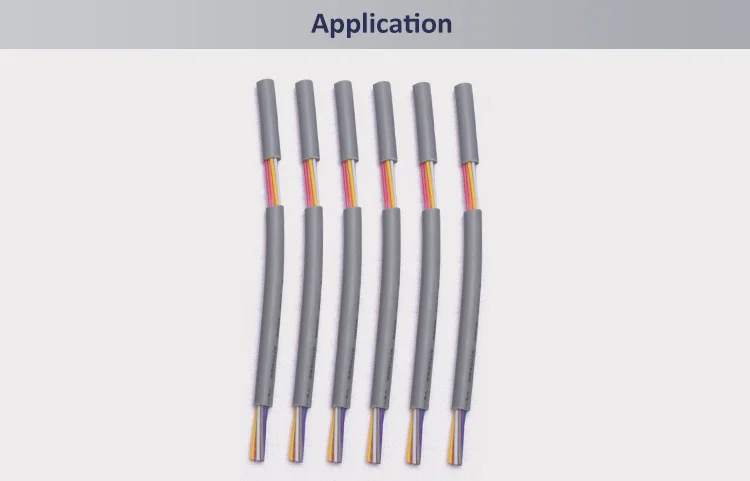

sample dispaly of Sheathed cable cutting and stripping machine，Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product

What is the maximum cable cross-section capacity of the JINGWEI WPM-09HT2 Sheathed Cable Stripping Machine?

The JINGWEI WPM-09HT2 is designed to process sheathed cables with a maximum cross-section of 25mm². This robust capacity makes it an ideal heavy sheath stripper for industrial-grade wires and large cables commonly used in power distribution, automotive harnesses, and heavy machinery manufacturing.

What types of cable sheaths can the WPM-09HT2 machine strip effectively?

This large cable stripper is engineered to efficiently strip tough, thick insulating sheaths, including PVC, rubber, and thermoplastic materials. Its precision blades and adjustable settings ensure clean, consistent stripping without damaging the internal conductors, making it a reliable wire processing machine for diverse industrial applications.

How does the JINGWEI WPM-09HT2 ensure operational safety and precision?

As a high-quality manufacturer from China, JINGWEI integrates several safety and precision features. The WPM-09HT2 includes blade guards, emergency stop functions, and stable clamping mechanisms. Its adjustable cutting depth and length settings allow for repeatable, precise stripping, minimizing waste and enhancing operator safety in industrial environments.

What are the primary industrial applications for this sheathed cable stripper?

The WPM-09HT2 25mm² is a versatile wire processing machine essential for cable harness manufacturing, electrical panel building, automotive wiring, and renewable energy projects (like solar and wind cable preparation). Its efficiency and durability support high-volume production lines where reliable, large cable processing is required.

Why choose JINGWEI as the manufacturer for this heavy sheath stripper?

JINGWEI is a reputable industrial machinery manufacturer from China, known for producing durable, high-performance, and cost-effective wire processing solutions. The WPM-09HT2 exemplifies our commitment to quality, offering robust construction, low maintenance, and excellent after-sales support, ensuring a strong return on investment for your cable processing operations.
